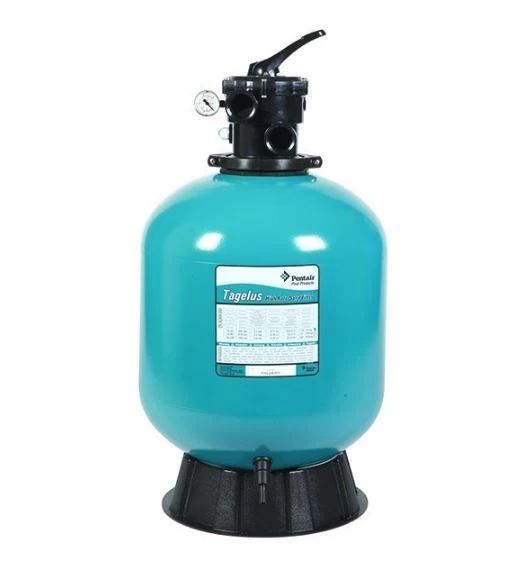

Tagelus Top Mount Filter

Tagelus Top Mount Filter Information

Time-proven internal design ensures water is exposed to maximum surface area of sand for optimal filtration performance and more efficient backwashing.

Flow system design also ensures maximum run times between backwashing to save you time.
Combination sand and water drain speeds servicing and winterizing.
All internal parts are threaded for fast and easy service.
Maximum operating pressure 3.5bar.
Maximum operating temperature: 50 degrees C.

10 year full tank warranty.

Flow rates based at 10m Head.
19” – 8.5m3/hr – 1.5” female threads.
24” – 14m3/hr – 1.5” female threads.
30” – 22m3/hr – 2” female threads.

As a rough guide:
A 19” – Tagelus (TA40) filter will do a domestic pool up to 51m3
A 19” – Tagelus (TA40) filter will do a domestic pool up to 84m3
A 30” – Tagelus (TA100) filter will do a domestic pool up to 132m3
NB: These calculations should be treated as a guide – your pool engineer should calculate based on your specific pool requirements.
