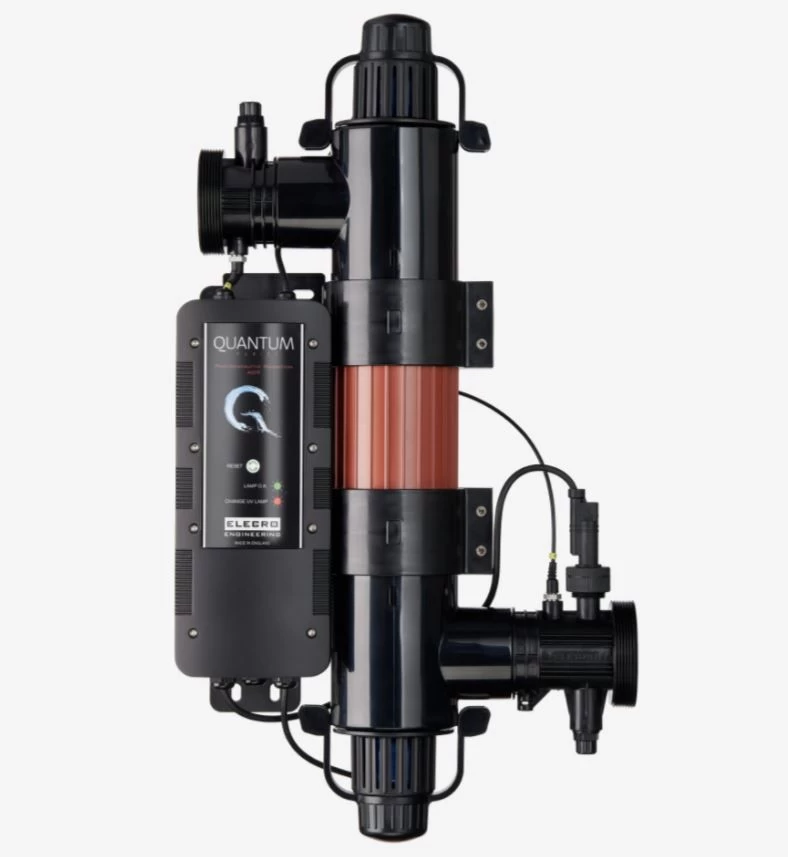

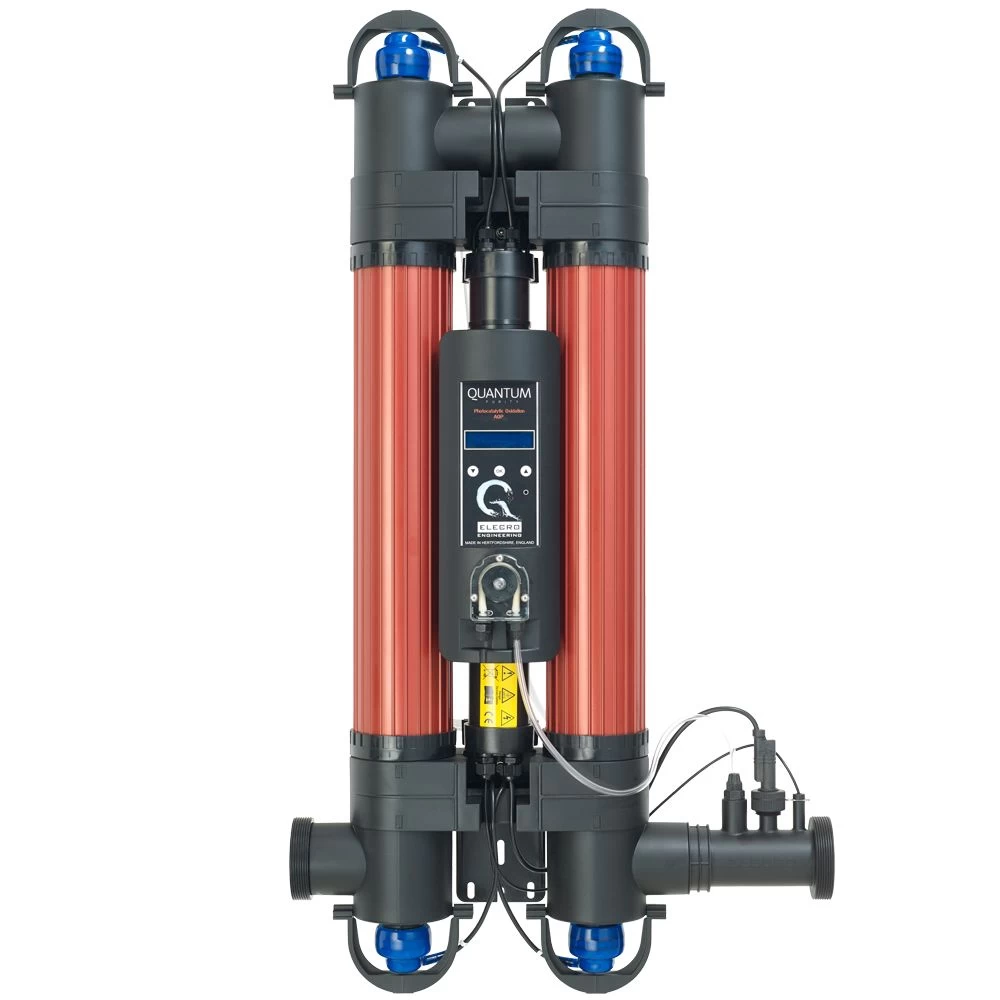

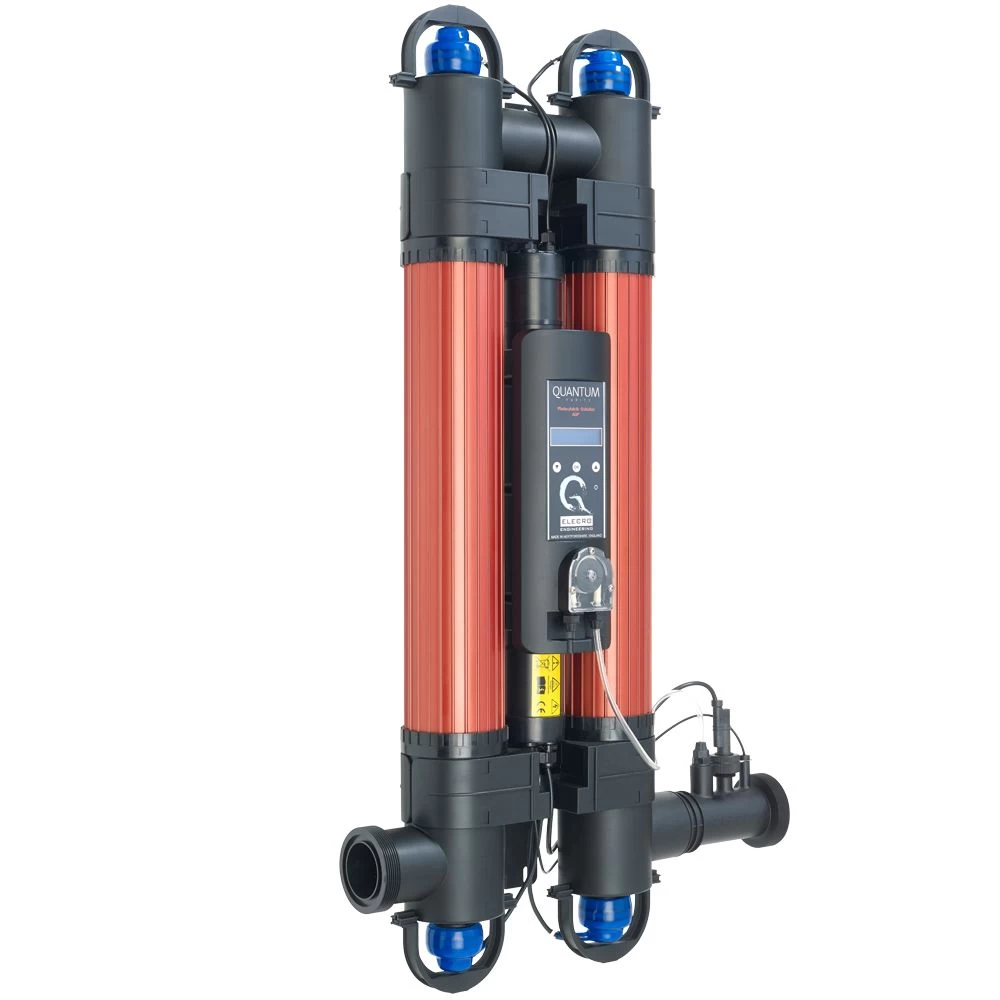

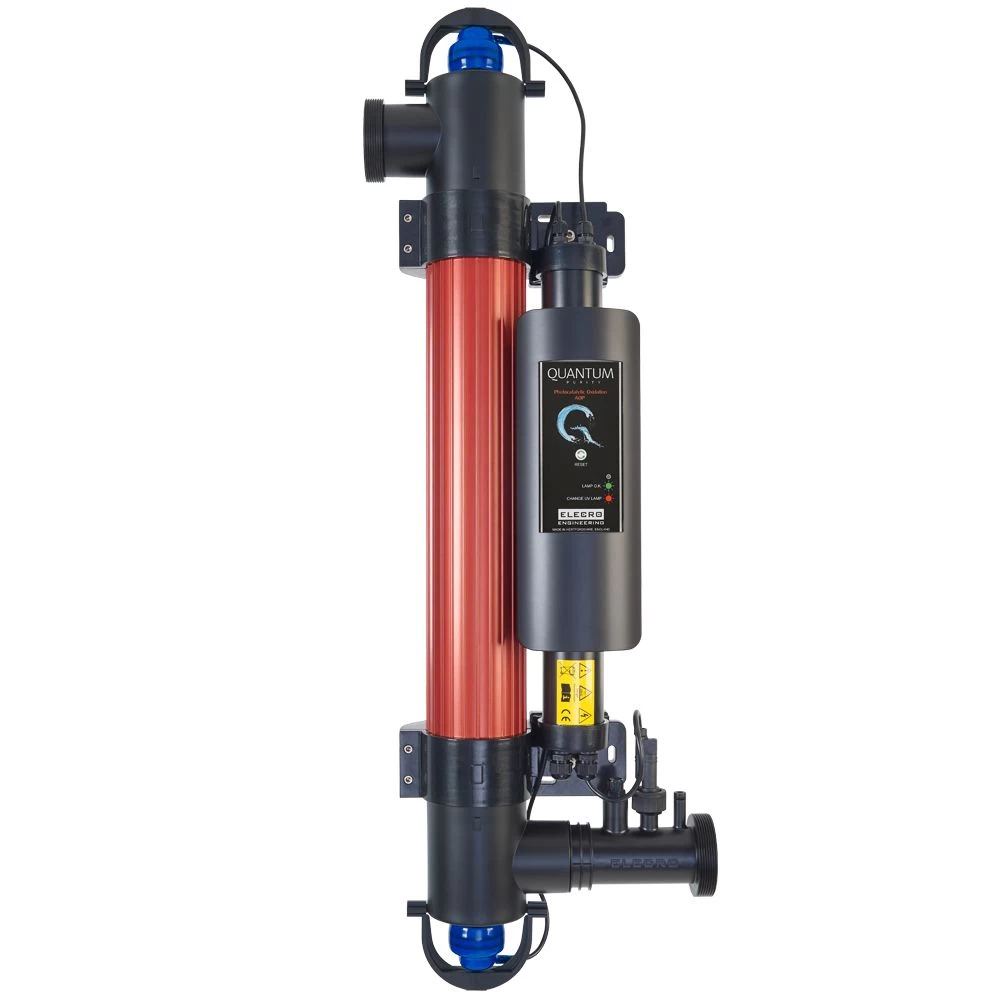

Elecro Quantum UV System

Elecro Quantum UV System Information

The Elecro Quantum UV System combines a Photocatalytic Oxidation and Hydroxyl Radical technology to make this one of the most powerful sterilising oxidiser available. Comes with a 2 year Manufacturers Warranty.

The Quantums cleaning technology replicates natures own technique for sterilising our planet. The photocatalytic oxidiser, refered to by scientists as “Nature’s Silver Bullet”, neutralises what chlorine cannot and reduces unwanted bacteria, pathogens and viruses that have not been seen before in the industry.

Comes with unions 2″ & 1.5″ which pipe can be glued into.

NB. It is recommended that you use a UV Strainer with any UV System.

Advantages:

• Completely destroys all bacteria, microorganisms and harmful pollutants with only pure water & CO2 being emitted back into the pool.

• Only technology with the ability to break down organic matter such as sun tan oils, urea and pathogenic bio-film.

• Drastically reduces chemical use.

• Visually clear and healthy pool water, with exceptional clarity and brilliance.

• Fully autonomous automatic system.

• UV lamp lifespan is longer than conventional UV products (14,000 hours) and comes with complete with lamp indicator.

• No impact on pH levels and compatible with all other treatments including salt electrolysis and sea water.

Intelligent Peristaltic Dosing – (Pro Range)

Pump Option:

• The Quantum has the option of being supplied complete with integral peristaltic dosing pump which is pre-programmed to dose Hydrogen Peroxide (Active Oxygen)or Chlorine. Featuring:
• Temperature Sensor: The water temperature is monitored and the dosing amount is automatically adjusted according to the water temperature. No on-going adjustments required.
• Flow Sensor: The dosing will only be started when there is a consistent water flow being delivered to the unit
• Automated: Dosing is set to take place at a desired time every day.
• Digital lamp life countdown timer & Neon indicator: Green = OK, Amber = under 500 hours remaining, Red = Lamp change required.

Please note – all Quantum UV Systems are ‘special’ order items which would be dispatched directly from the supplier.

Techincal Specs:

Power Supply	100V~240V
Min. Flow Rate	1.5m³/h
Max. Flow Rate	Mini: 10,000 litres per hour; 10m³/h Single: 14,000 litres per hour; 14m³/h Double: 28,000 litres per hour; 28m³/h
Max. Pool Size	Mini: 35,000 litres; 35m³ Single: 65,000 litres; 65m³ Double: 130,000 litres; 130m³
Max. Power Consumption	Mini: 40W Single: 64W Double: 128W
Lamp	Low pressure/high output
Lamp Life	9,000 – 14,000 hours
Dosing Rate	Exceeds the equivalent of 30mj/cm² at max. flow rate
Ingress Protection Rating	IP64
Frequency	50/60 Hz
Working Pressure	3 Bar maximum
Water Connections	2″/63mm stepped ABS unions + reducers 1½”/50mm
Salt Water	100% chlorinated salt and sea water safe
Mounting	Vertical or horizontal wall mounting
Oxidisation Processes	Quantum photocatalytic oxidiser (PCO) & hydroxyl radicals (HO)

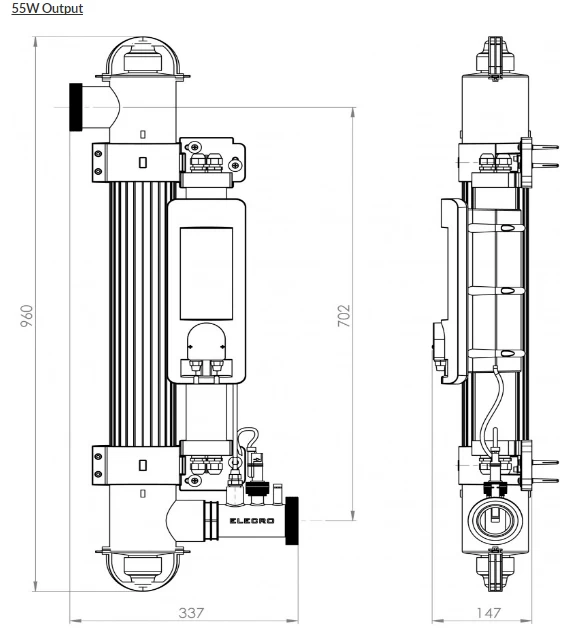

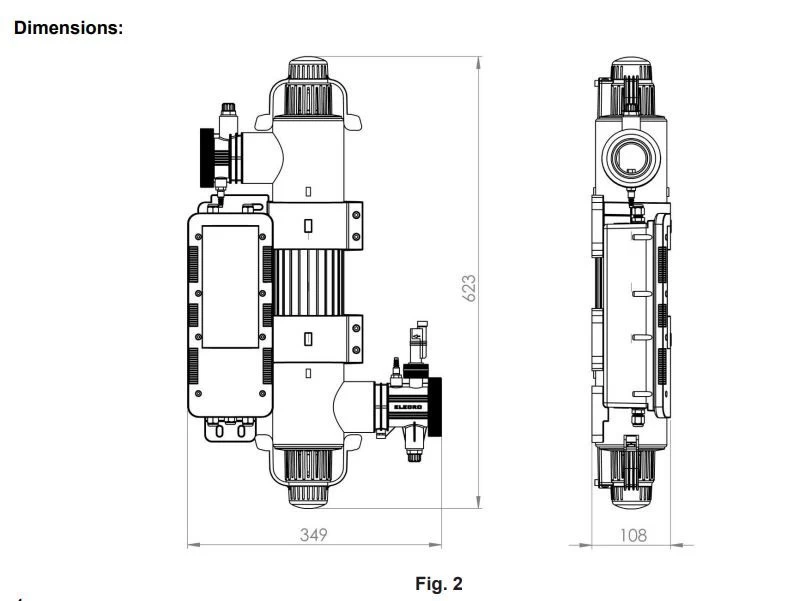

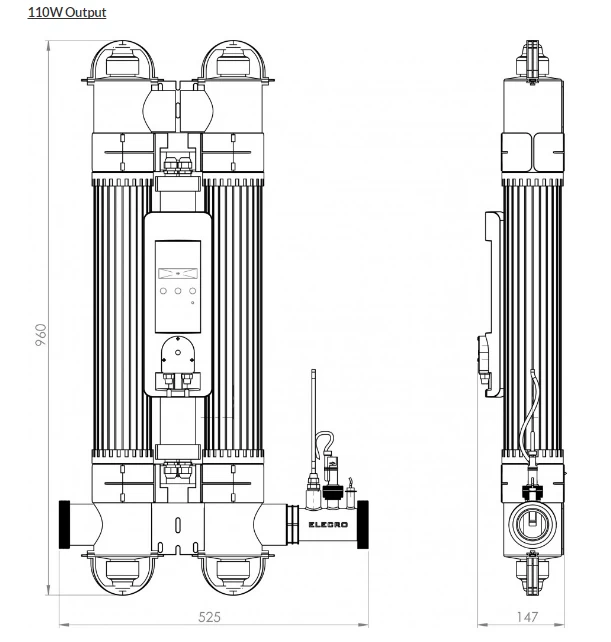

Schematic:



Not deisgned for comercial use
